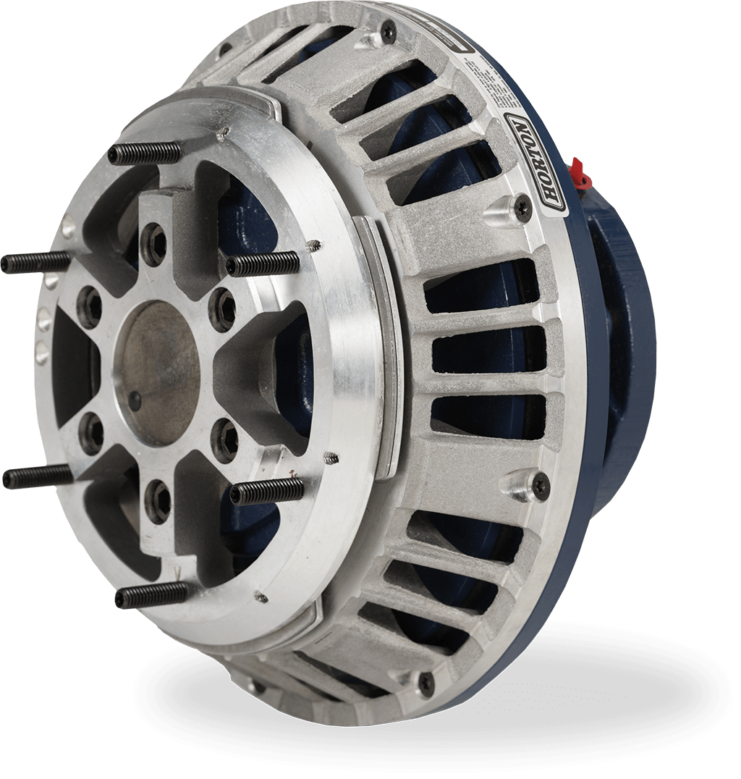

MSC2® Multispeed Fan Drives
In the low-speed mode, the MSC2 draws significantly less horsepower than an engaged on/off fan drive. This helps when hauling on steep inclines in moderate climates by increasing the horsepower available to the drivetrain. The MSC2’s transition from low- to high-speed also creates less change in available horsepower than an on/off fan drive
Applications
- Cranes
- Variety of other off-highway equipment
Specifications
| Actuation | Eddy current at low-speed with pneumatic lock-up* |
| Typical Horsepower Range | Up to 280 KW [375 HP] |
| Fan blade capacity | Up to 762 mm [30″] |
| Minimum Air Pressure Requirements | Minimum 620.5 KPA [90 psi] |
Recommended Fans
LS Series
Compact 11-blade design with optimized blades for minimized deflection and reduced fan stress. Allows for custom pilot of bolt circles. Available diameter range: 450 – 600.2mm [17.72″ – 23.62″]
