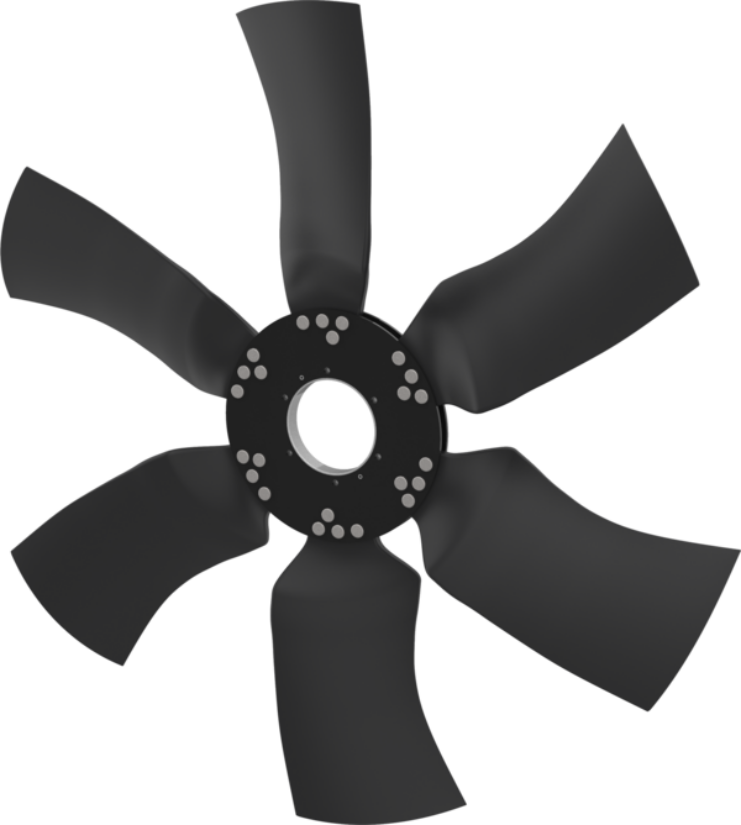

HM1400 Modular Fan
The HM1400 fan utilizes the optimized blade design of the HTEC fan family while providing the reduced weight of the proven Horton nylon. This combination allows efficient, customizable performance to meet your cooling needs in mid-range fan diameters
Applications
- Agricultural tractors
- Excavators
- Gensets
- Fracking Units
- Construction Equipment
- Forestry
Specifications
| Diameter | 890 – 1422 mm [35″ – 56″] |
| Standard Pilots | Standard and customizable mounting available, including straight and tapered bore |
| Blade Configurations | 5 to 15 blades, equally or unequally spaced |
| Maximum Pitch Width | 109mm |
| Maximum Tip Speed | 91 m/sec [18,000 ft/min] |
Recommended Drives
RCV250
Variable speed with a light, compact and reliable design allows the RCV250 to turn larger fans that require higher torque while maximizing efficiency and requiring zero maintenance.
